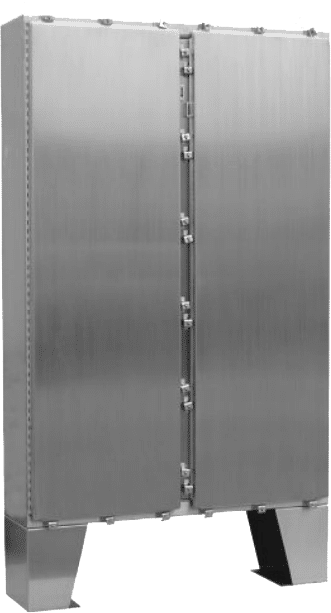

Type 4X Stainless Steel Floor Mounted Double Door Enclosures



Description

C & I Enclosures Type 4X Stainless Steel Floor Mounted Double Door Enclosures are UL Listed for either indoor or outdoor use to provide a degree of protection against falling rain, splashing water, and hose-directed water; undamaged by the formation of ice on the enclosure. Enclosure resists corrosion.



Construction

Fabricated in accordance with U.L. specifications from code gauge type 304 stainless steel. A rolled lip is provided around three sides of each door and along the top of the enclosure opening to exclude liquids and contaminants. An oil resistant gasket is attached to the doors The enclosures are provided with continuous hinges and door clamps on three sides of each door to insure a water-tight seal. A hasp and staple are provided on each door for padlocking. These enclosures have a removable center post for easy access to the enclosure. Each enclosure is provided with lifting eyes for easy handling. All seams are continuously welded and ground smooth. Collar studs are provided for mounting optional panels.



Material / Finish

Provided unpainted with a brushed finish on the exterior. Also available in type 5052 H-32 aluminum or type 316 stainless steel.
